KT-IPC8411

KT-IPC8411

Model：KT-IPC8411

Main Feature：

★ Support Gen 6th & 7th Intel LGA1151 (Skylake/Kabylake-S) series processors

★ Dual-channel 4xDDR4,supports up to 64GB,8x3.5"HDD

★ Support DP, HDMI, VGA display options, built-in EDP interface

★ Supports 2× Intel Gigabit LAN ports I219+I211

★ Support 4xUSB3.0+7xUSB2.04 x PCIe card slot +3 x PCI card slot

★ Support 12xCOM232,1xCOM422/485, support WIFI, 4G module

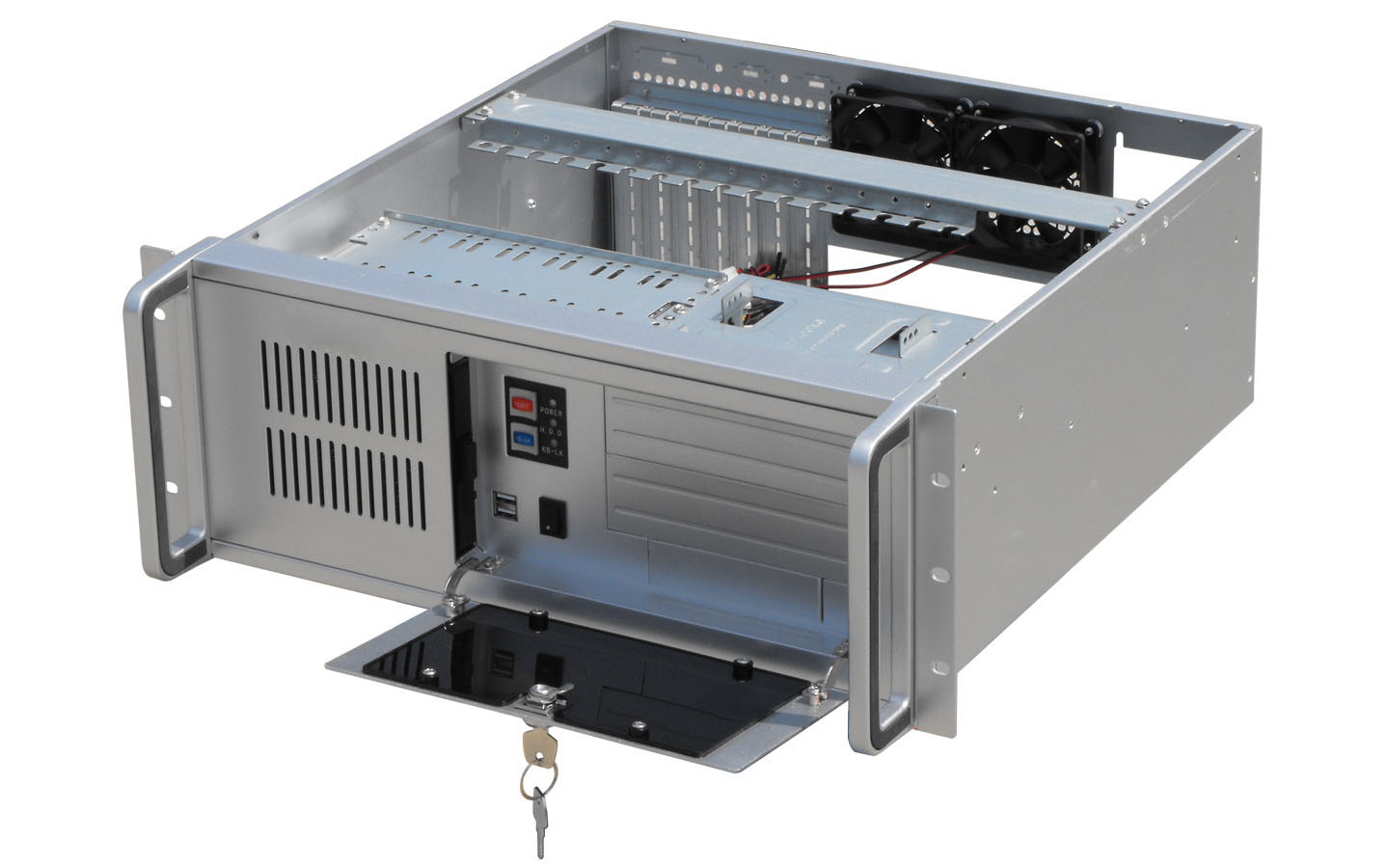

★ Standard 19 "4U industrial computer form, support rackmount,desktop installation
★ Hard disk bracket adopts spring damping design, effectively reduce the vibration of hard disk working
★ Products are widely used in industrial control, security monitoring, mechanical automation, intelligent transportation, Internet of things and other fields


0.00
0.00


Model：KT-IPC8411

Main Feature：

★ Support Gen 6th & 7th Intel LGA1151 (Skylake/Kabylake-S) series processors

★ Dual-channel 4xDDR4,supports up to 64GB,8x3.5"HDD

★ Support DP, HDMI, VGA display options, built-in EDP interface

★ Supports 2× Intel Gigabit LAN ports I219+I211

★ Support 4xUSB3.0+7xUSB2.04 x PCIe card slot +3 x PCI card slot

★ Support 12xCOM232,1xCOM422/485, support WIFI, 4G module

★ Standard 19 "4U industrial computer form, support rackmount,desktop installation
★ Hard disk bracket adopts spring damping design, effectively reduce the vibration of hard disk working
★ Products are widely used in industrial control, security monitoring, mechanical automation, intelligent transportation, Internet of things and other fields



Specification：

System

-Intel® SOC 6th Generation Sky Lake &Kabylake Core-i series desktop processor,i3-6100TE/i5-6500TE/i7-6700TE;i3-7100U/i5-7200U/i7-7500U

-4 x DDR4  2133MHz Max 64G

-3 x SATA3.0,1 x M-SATA

-On-board Intel I211,1xIntel I219 Gigabit LAN

-On-board Realtek ALC662HD Audio Decoding Controller

-Support WiFi, Bluetooth, 4G

-Support wake on LAN, autoboot with power on,TeamViewer Host,TPM/TCM reserved

Front I/O

-1 x Power

-1 x Reset

-2 x  LED

-2 x USB2.0

Rear I/O

-1 x PS2

-4 x USB2.0,4 x USB3.0

-1 x HDMI

-1 x DP

-1 x COM

-1 x VGA

-2 x LAN

-3 x Audio

-Expansion:8 x 3.5"HDD,2 x 5.25"CD driver

Mechanical

-Grey color

-480x450x173mm

-Less than 6.5 KG

-Power Consumption 60W

-Standard PS2 power，AC 220V Input

Environment

-Operating temperature: -20°C to 60°C

-Storage temperature: -20°C to 70°C

-Storage humidity: 10~95%@40°non-condensing

-Certificate:CE

Mounting

-Rackmount,Desktop

Operating System

-Windows 7/10/Linux
