KT-BOX1213

KT-BOX1213

Model：KT-BOX1213
Intel®Alder Lake 12th Generation Core™ Processor MINI BOX PC

Main Feature：

★ 12th Generation Intel® Core™ (Alder Lake - PS) processor SoC

★ Supports SO-DIMM, M-SATA, M.2 Sata, and M.2 NVME storage

★ Equipped with one HDMI port and one DP/VGA port, support dual/tribrid and asynchronous display

★ Standard dual LAN,Support 4xLAN expansion

★ 1xMini-PCIE(for WiFi), 1xSIM, 3G, 4G, and 5G modules

★ Support embedded, wall mounted, desktop installation

★ High performance active cooling & Silent Fan & Robustness design
★ Applied for Commercial office, personal portable host, e-commerce, training and education etc



0.00
0.00


Model：KT-BOX1213
Intel®Alder Lake 12th Generation Core™ Processor MINI BOX PC

Main Feature：

★ 12th Generation Intel® Core™ (Alder Lake - PS) processor SoC

★ Supports SO-DIMM, M-SATA, M.2 Sata, and M.2 NVME storage

★ Equipped with one HDMI port and one DP/VGA port, support dual/tribrid and asynchronous display

★ Standard dual LAN,Support 4xLAN expansion

★ 1xMini-PCIE(for WiFi), 1xSIM, 3G, 4G, and 5G modules

★ Support embedded, wall mounted, desktop installation

★ High performance active cooling & Silent Fan & Robustness design
★ Applied for Commercial office, personal portable host, e-commerce, training and education etc





Specification：


System

-12th Generation Intel® Core™ (Alder Lake - PS) processor SoC

 Intel® Core™ i7-12800HL, 14 Core, 2.4GHz, 24M Cache

 Intel® Core™ i7-12700HL, 14 Core, 2.3GHz, 24M Cache

 Intel® Core™ i5-12600HL, 12 Core, 2.7GHz, 18M Cache

 Intel® Core™ i5-12500HL, 12 Core, 2.5GHz, 18M Cache

 Intel® Core™ i3-12300HL, 8 Core, 2GHz, 12M Cache

-DDR4 3200MHz  Max 32G

-M.2 2280 Sata 256GB

-1xI266V,1xRLT 8111H optional

-Support WiFi, Bluetooth, 3G/4G/5G

-Support wake on LAN, autoboot with power on,diskless start

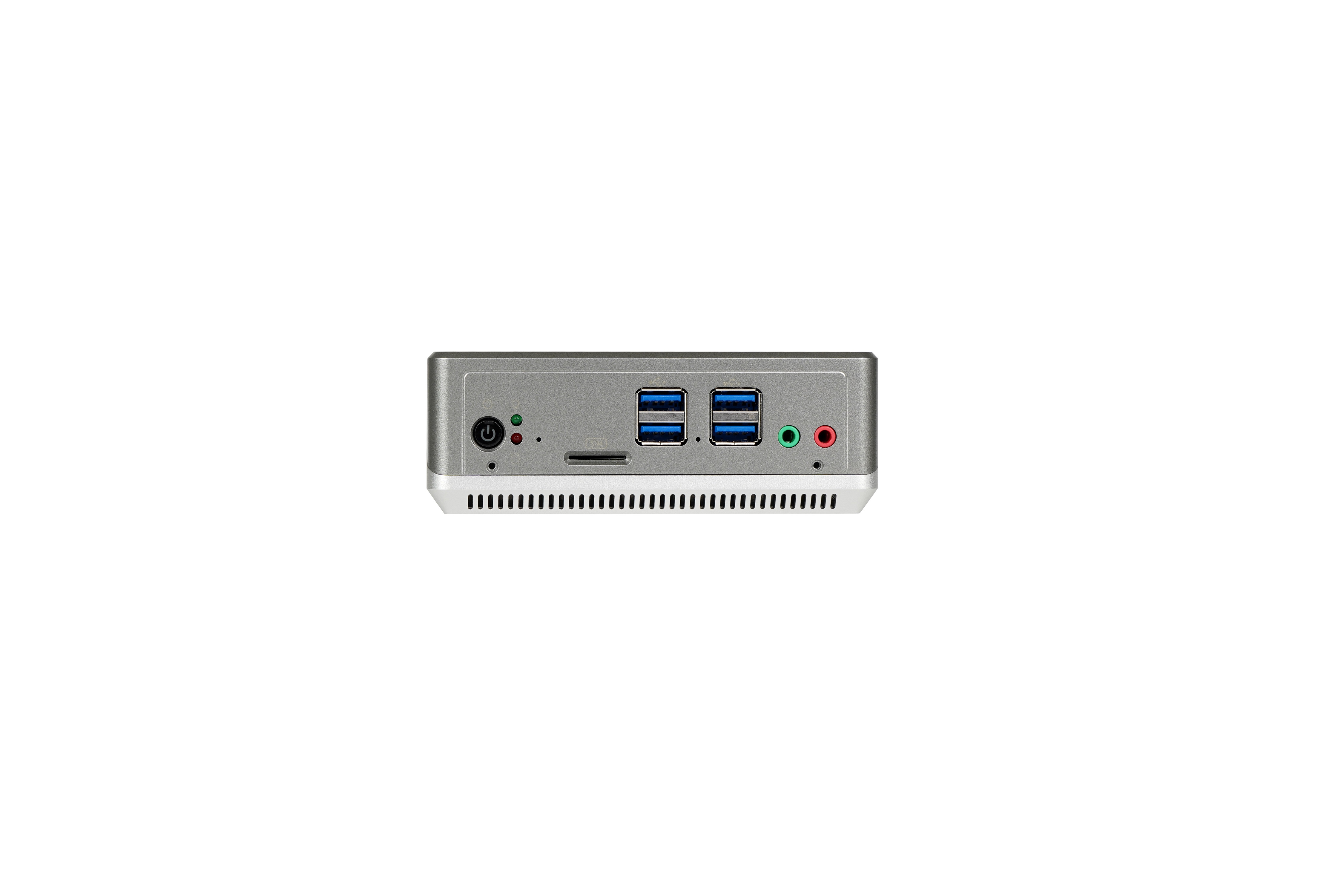

Front I/O

-1 x Power（LED）

-1 x HDD_LED

1 x SIM

-2 x USB3.2 (10Gpbs)

-1 x Type C (Full Function)

-1 x microSD

-1 x Audio

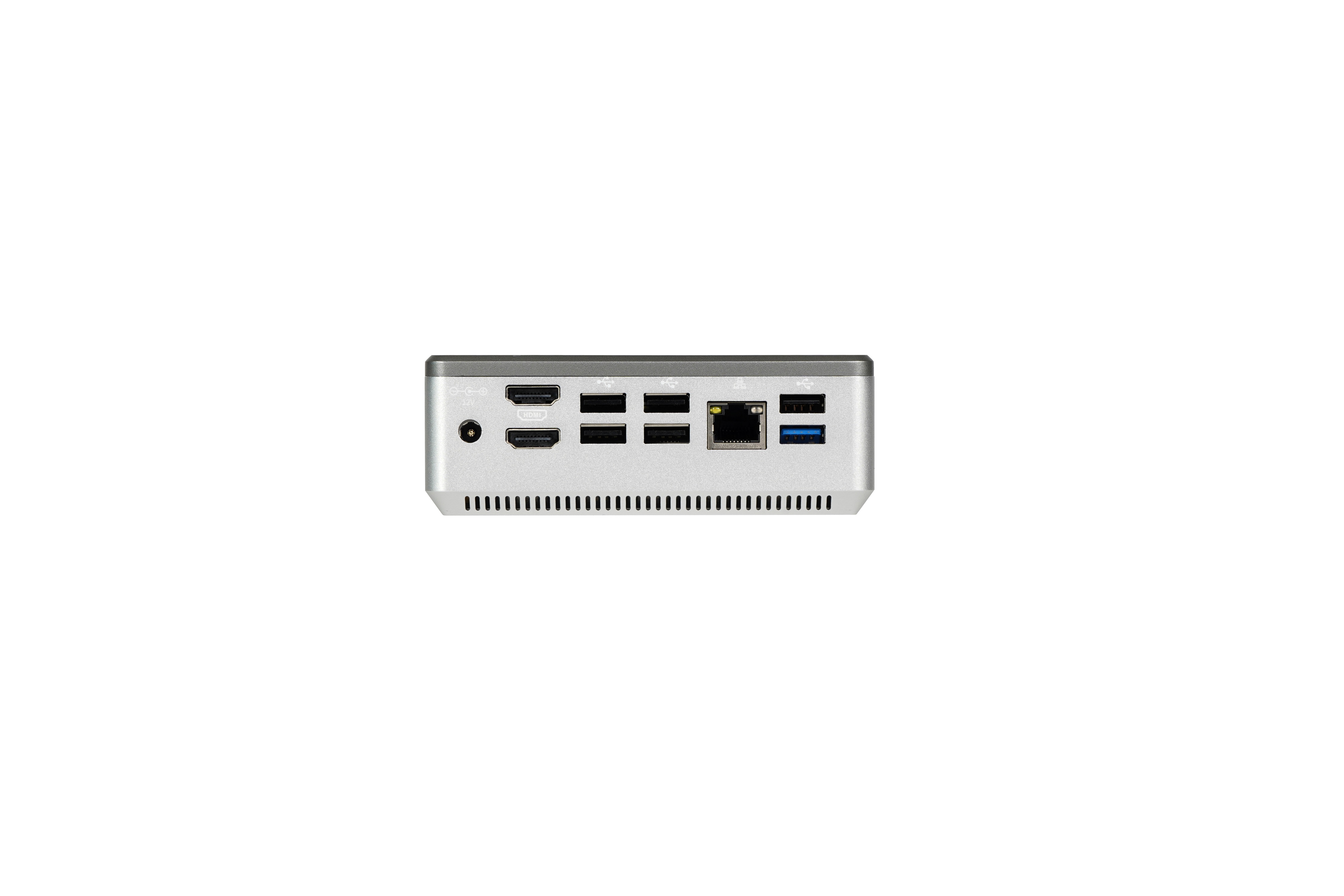

Rear I/O

-4 x USB2.0

-1 x Type C (Power)

-2 x LAN

-1 x ghost&cl_cmos button

-1 x HDMI

-1 x VGA (Optional)

-1 x RS232 COM (Optional)

Mechanical

-Grey color

-Aluminium Alloy Die-casting+ABS

-Power consumption < 15W

-126x126x46mm

-Less than 0.5 KG

-DC 12V Input

Environment

-Operating temperature: 0°C to 50°C

-Storage temperature: -20°C to 70°C

-Storage humidity: 10~95%@40°non-condensing

-Certificate:CE

Mounting

-Embedded,Wallmount,Desktop

Operating System

-Windows 10/Linux
