KT-EPC1711P1

KT-EPC1711P1

Model：KT-EPC1711P1
Fanless Embedded PC

Main Feature：

★Intel® TigerLake,Raptor Lake & Alder Lake Processor

★ Support SO-DIMM,M-SATA,M.2 Sata,M.2 NVME Storage

★ Support DP,HDMI  Dual/4-display Synchronous&Asynchronous

★ Standard 6*COM、2*LAN,multi-USB expansion

★ Support 1*Mini-PCIE(for WiFi,1*SIM,support 3G,4G,5G module) support 1*PCI,1*PCI-e expansion

★ Support embedded,wall mounted,desktop installation

★ Fanless/Fan,magnesium alloy casing, and aerodynamic heat  dissipation design

★ Applied for industrial equipment, GPS navigation, environmental online monitoring, government,telecommunications, banks, and electric power


0.00
0.00


Model：KT-EPC1711P1
Fanless Embedded PC

Main Feature：

★Intel® TigerLake,Raptor Lake & Alder Lake Processor

★ Support SO-DIMM,M-SATA,M.2 Sata,M.2 NVME Storage

★ Support DP,HDMI  Dual/4-display Synchronous&Asynchronous

★ Standard 6*COM、2*LAN,multi-USB expansion

★ Support 1*Mini-PCIE(for WiFi,1*SIM,support 3G,4G,5G module) support 1*PCI,1*PCI-e expansion

★ Support embedded,wall mounted,desktop installation

★ Fanless/Fan,magnesium alloy casing, and aerodynamic heat  dissipation design

★ Applied for industrial equipment, GPS navigation, environmental online monitoring, government,telecommunications, banks, and electric power



Specification：


System

-Intel® Raptor Lake/Alder Lake S Processor Gen 12/13th,Intel® Core™ Processor with H610/B660/H670  etc

-2*SO-DIMM DDR4 3200MHz Max64GB

-1*M.2 M Key，PCIEx4（PCH signal PCIE3.0 rate）; 1*SATA3.0 Port

-On-board 1*IIntel i226-V Network Card（Dual-LAN optional;）

-Support WiFi6、BT、4G、5G、watchdog


Front I/O

-1 x Power ON/OFF

-1 x LED (PW HDD)

-1 x LINE-OUT

-1 x MIC-IN

-4 x USB2.0

-10 x COM

-1 x 4Pin Phoenix terminal ( Power Input,Switch）

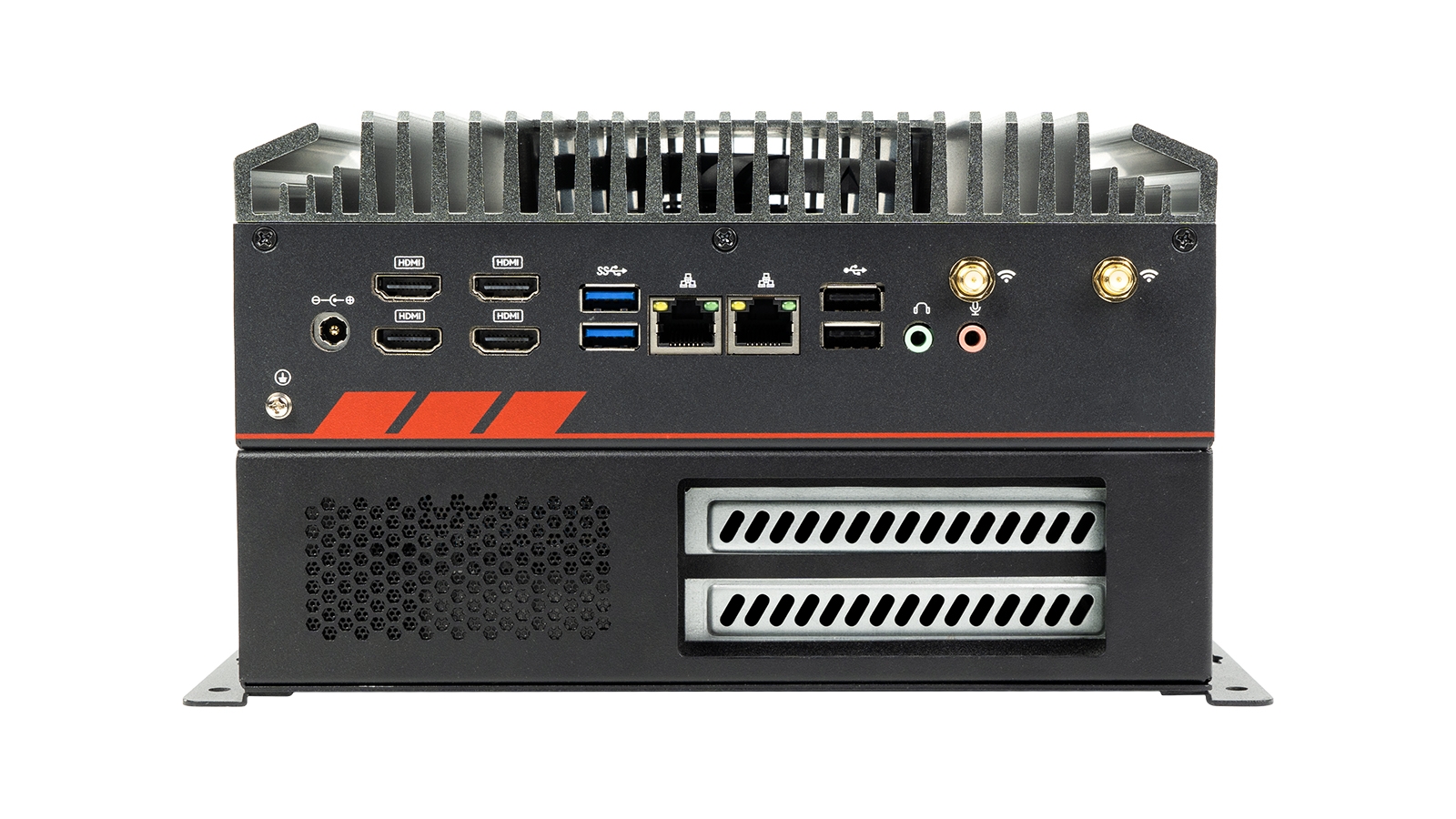

Rear I/O

-1 x LINE-OUT

-1 x MIC-IN

-2 x LAN

-2 x USB3.0 Gen2(10Gbps)

-4 x HDMI

-1 x DC IN

-2 x Antenna（WiFi）

-1 x M3 ground screw hole

Mechanical

-Grey color

-Aluminium Alloy Die-casting + sheet metal

-Power consumption < 30W

-250x205x134 mm

-Less than 6KG

-DC 19~24V Input

Environment

-Operating temperature: -20°C to 60°C

-Storage temperature: -20°C to 70°C

-Storage humidity: 10~95%@40°non-condensing

-Certificate:CE

Mounting

-Embedded,Wallmount,Desktop

Operating System

-Windows 7/10/Linux
