KT-EPC1251N

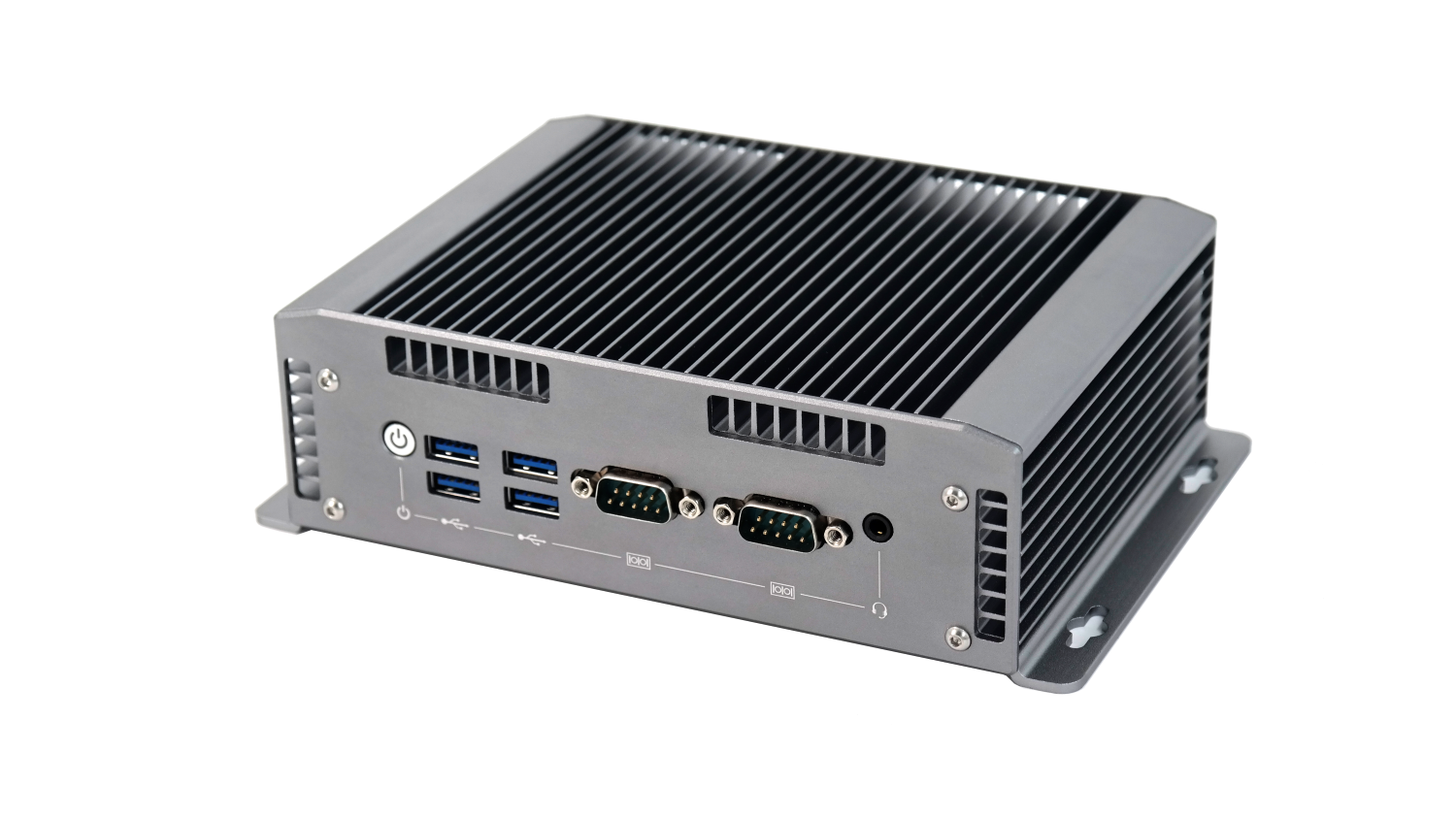

KT-EPC1251N

Intel®SOC Baytrail Celeron Fanless Box PC

Main Feature：

★ Intel®SOC Baytrail Celeron® J1900 processor

★ Supports SO-DIMM,M-SATA storage

★ Equipped with 1xHDMI port and 1xDP/VGA port, support dual and asynchronous display

★ Standard 2xLAN,support 2xCOM expansion

★ Supports 1xMini-PCIE(for WiFi), 1xSIM, 3G/4G/5G module

★ Support embedded,wall mounted,desktop  installation

★ Fanless & Sealed dustproof & Robustness design

★ Applied for production line automation, machine vision,security monitoring, intelligent logistics sorting etc


0.00
0.00


Intel®SOC Baytrail Celeron Fanless Box PC

Main Feature：

★ Intel®SOC Baytrail Celeron® J1900 processor

★ Supports SO-DIMM,M-SATA storage

★ Equipped with 1xHDMI port and 1xDP/VGA port, support dual and asynchronous display

★ Standard 2xLAN,support 2xCOM expansion

★ Supports 1xMini-PCIE(for WiFi), 1xSIM, 3G/4G/5G module

★ Support embedded,wall mounted,desktop  installation

★ Fanless & Sealed dustproof & Robustness design

★ Applied for production line automation, machine vision,security monitoring, intelligent logistics sorting etc



Specification：


System

-Intel® SOC Baytrail Celeron J1900 2.0GHz Quad-Core

-DDR3 1333MHz Max 8G

-1xSATA3.0,1xMSATA

-2xIntel RLT8111H

-Support WiFi,Bluetooth,3G/4G/5G

-Support watchdog,wake on LAN,autoboot with power on,diskless start

Front I/O

-1 x Power ON/OFF（LED）

-4 x USB3.0

-2 x COM

-1 x Audio

Rear I/O

-2 x WIFI Antenna

-2 x USB2.0

-1 x USB3.0

-2 x LAN

-1 x HDMI

-1 x VGA

-1 x DC IN

Mechanical

-Grey color

-Aluminium Alloy Die-casting

-Power consumption < 15W

-182x127.8x57.2mm

-Less than 1.0 KG

-DC 12V Input

Environment

-Operating temperature: -20°C to 60°C

-Storage temperature: -20°C to 70°C

-Storage humidity: 10~95%@40°non-condensing

-Certificate:CE

Mounting

-Embedded,Wallmount,Desktop

Operating System

-Windows 10/Linux
