KT-EPC1461N

KT-EPC1461N

8-13th Generation Intel® Core™ i3 i5 i7 Industrial Box PC

Main Feature：

★ Fanless with 8-13th Generation Intel® Core i3/i5/i7 Processors

★ Support SO-DIMM,M-SATA,M.2 Sata,M.2 NVME storage

★ Equipped with 1xHDMI port and 1xDP/VGA port, support dual and asynchronous display

★ 2~4xLAN,6xCOM expansion

★ 1xMini-PCIE(for WiFi), 1xSIM, 3G/4G/5G module

★ Support embedded,wall mounted,desktop  installation

★ 12~19V Wide Voltage,Fanless & Sealed dustproof & Robustness design

★ Applied for production line automation, machine vision,security monitoring, intelligent logistics sorting etc


0.00
0.00


8-13th Generation Intel® Core™ i3 i5 i7 Industrial Box PC

Main Feature：

★ Fanless with 8-13th Generation Intel® Core i3/i5/i7 Processors

★ Support SO-DIMM,M-SATA,M.2 Sata,M.2 NVME storage

★ Equipped with 1xHDMI port and 1xDP/VGA port, support dual and asynchronous display

★ 2~4xLAN,6xCOM expansion

★ 1xMini-PCIE(for WiFi), 1xSIM, 3G/4G/5G module

★ Support embedded,wall mounted,desktop  installation

★ 12~19V Wide Voltage,Fanless & Sealed dustproof & Robustness design

★ Applied for production line automation, machine vision,security monitoring, intelligent logistics sorting etc



Specification：


System

-8-13th Generation Intel® Core™ i3/i5/i7 processor

-NB-DDR4,support 2133/2400/2666/3200MHz,Max 32GB

-Support Key-M port M.2 2280

-Intel i225/i226  2.5G Network Card

-Support WiFi,Bluetooth,3G/4G/5G

-Support watchdog,wake on LAN,autoboot with power on,diskless start

Front I/O

-1 x Power ON/OFF（LED）

-4 x USB3.0

-2 x COM

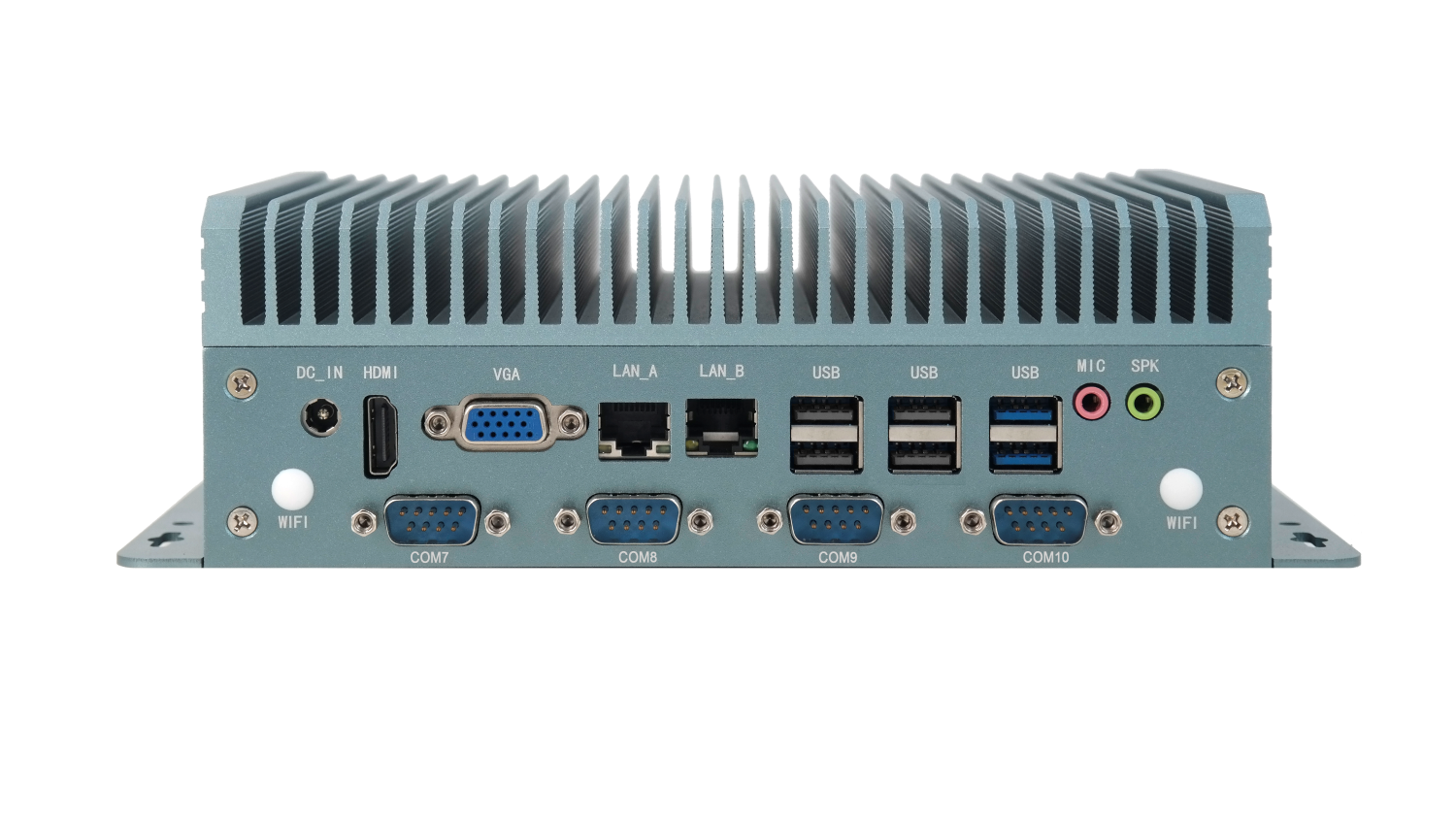

Rear I/O

-2 x WIFI Antenna

-1 x Line-out/Mic

-2 x USB3.0 (2 x USB3.0+4 x USB2.0 optional)

-4 x LAN (2 x LAN optional)

-1 x HDMI

-1 x VGA

-4 x COM

-1 x DC IN

Mechanical

-Grey color

-Aluminium Alloy Die-casting

-Power consumption < 15W

-235x151x73mm

-Less than 1.5KG

-DC 12V~19V Input

Environment

-Operating temperature: -20°C to 60°C

-Storage temperature: -20°C to 70°C

-Storage humidity: 10~95%@40°non-condensing

-Certificate:CE

Mounting

-Embedded,Wallmount,Desktop

Operating System

-Windows 10/Linux
